Technical Specifications

The LED Q4D operates with a current of 50mA per color and 25mA for the buzzer. It has a flash frequency of 60-70 Hz/min and a buzzer volume exceeding 95dB. With an IP54 rating, it resists dust and water splashes, and can withstand temperatures below 60°C. The LED components offer a lifespan of 50,000 hours. It features a silver finish, is installed via screws, and is constructed with an aluminium body and PMMA light elements.

Coding Principle

The LED Q4D has a structured coding system for customization:

• Model No: Q4D
• Layer: 1 (one-layer)
• Mounting: Foldable type (A)
• Voltage: Options include DC24V (02) and AC220V (03)
• Function: Choices are Steady (B), Red flash (S), Steady with buzzer (F), and Red flash with buzzer (C)
• Connect Type: Available in PNP&NPN (T) and Contact type (C)
• Color: Red (R), Yellow (Y), Green (G)

Applications & Features

Applications

It is suitable for automation equipment, security inspection equipment, LED packaging equipment, alarm systems, SMT equipment, CNC machine tools, engraving machines, industrial and mining equipment, and more.

Features

1. Customizable Branding: The lamp body can be engraved with a custom LOGO to boost brand recognition.
2. Audible Alerts: A built-in buzzer with a volume of 95 decibels provides clear sound notifications.
3. Long-Lasting LED: High-brightness LED color chips ensure a long lifespan and low light decay.

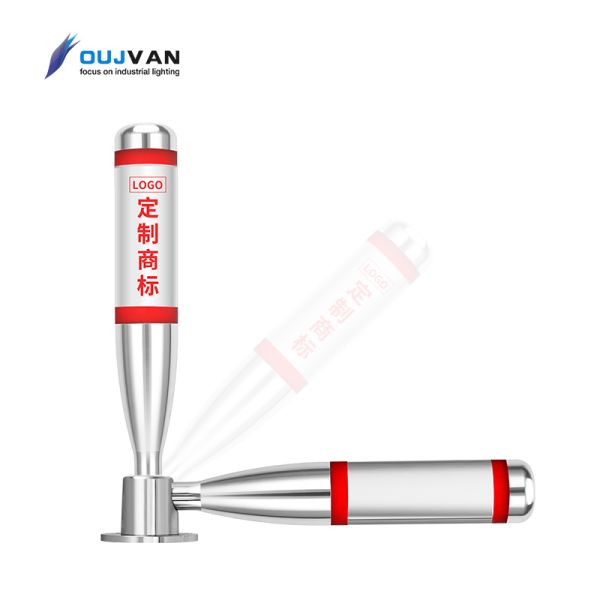

4. Easy Installation & Transport: The foldable design enables easy installation, transportation, and space-efficient storage.
